Identifying automatic vehicle location (AVL) data completeness issues in a rural transit authority system

Roger A. Solano^* , Matthew J. Hart and Dong P. Nguyenr

Slippery Rock University, Slippery Rock, PA 16057, USA ^*Corresponding author's email address: roger.solano@sru.edu

Keywords: Automatic vehicle location, public transit, buses, data quality, rural transit

ARTICLE HISTORY: Received: 08-Feb-2017, Accepted: 08-Mar-2017, Online available: 21-Mar-2017

Contribution/ Originality

This is, to our knowledge, the first paper to review data from a rural transit system and offer relatively easy and straight forward tools for data completeness analysis. The methodology could be replicated by other transit systems with limited data analysis resources. This research would be of interest to Transit systems that uses AVL technology, particularly rural transit systems as well as AVL hardware and software providers.

1. INTRODUCTION

In recent years, there has been an increasing adoption of automatic vehicle location (AVL) technology by transit agencies nationwide (El-Geneidy et al., 2011; Furth, 2006; Radin, 2005). This includes rural transit agencies that may lack the resources and tools required to analyze extremely large data sets created.

Current AVL systems match location data with route and schedule information in real time (Furth et al., 2003). However, when using AVL system, missing data is inevitable due to communications faults (Hounsell et al., 2012; McLeod, 2007). Possible sources of unreliability include satellite unavailability, Partial/total signal blocking, or other temporary failure (Moreira-Matias et al., 2015). A common problem is data capture at the beginning or end of the route when the bus is in terminal (Furth et al., 2004; Hammerle et al., 2005). Some transit providers such as King Country Metro report 80% of data recovery from AVL (Furth, 2006). When an entire bus fleet is equipped with AVL, data recovery rates are not of importance unless there is systematic data loss (Furth, 2006). Saavedra et al. (2011) propose an automatic data validation methodology for archived AVL data. They identify data as suspect when physical constraints are violated (negative travel time for example) or outliers that cannot be explained by the trip pattern.

2. DATA

We analyzed data from a system that covers 25 square miles and a population of 31,084 in 2010. It serves 218,278 passengers annually, including 45,605 senior passengers. The system has 4 full-time employees and 6 part-time employees, a fleet of 6 busses, and installed an AVL solution in January of 2010. We focused our study in route one (Figure 1). The route has three different patterns during weekdays, that cover different number of stops: Weekday covering 23 stops to 9 trips, night covering 26 stops with 3 trips and night 2 covering 23 stops with one trip. We limit our analysis to weekdays, with patterns on weekdays and night for a total of 12 trips per day. The route is set as a loop, beginning and ending at the same stop.

Figure 1: Map of Route one (Source: Transit system website)

The communication between the bus and the AVL system is done via cellular. The bus sends an AVL record every 90 seconds. It also sends a stop report including schedule adherence each time a trigger box is departed. A trigger box is a set of two latitude points and two longitude points that creates a box around a stop. Once the bus GPS enters and exits the box, the stop is triggered as being serviced. If the trigger box is not entered, the system will not generate a stop report.

We received from the transit authority AVL data for the year 2013. We were provided with a single table with 86,546 records. The datum covers all the trips made in the route during 2013. The fields in the data are described in Table 1.

Table 1: Fields in the data set

2.1. Data completeness

We audited the data to identify missing values and possible data recording errors. We identified 16,123 records where the AVL data ware missing (ActualDepartureTime, SecondsLate, Vehicle_Id, StopReportTime, Driver_Last_Name, Driver_First_Name, and Arival_Time recorded as NULL).

Data from the first and last stop ware unreliable and ware eliminated from the study. This is a common problem with AVL systems. We identified that all records from stop 20 were missing. There were 480 stop records with negative Stop_Dwell_Time. Most are duplicated entries or followed by a missing record, since a negative cell time is impossible the records were eliminated. Fifteen records were duplicates and were eliminated.

A graph of the percentage of missing values by trip start time (Figure 2) shows a strong correlation: as the departure time increases, the percent of missing values increases. A large number of missing values occur in the 5:30 PM trip. An analysis of missing values by stop number (Figure 3) indicates an increase in the number of missing values in stops 5, 6, 8, 21, and 23. Stops 8, 21, and 23 are serviced in trips that depart after 5:30 PM and have a larger percentage of missing values as showed in Figure 4.

Figure 2: Percentage of missing values by trip start time

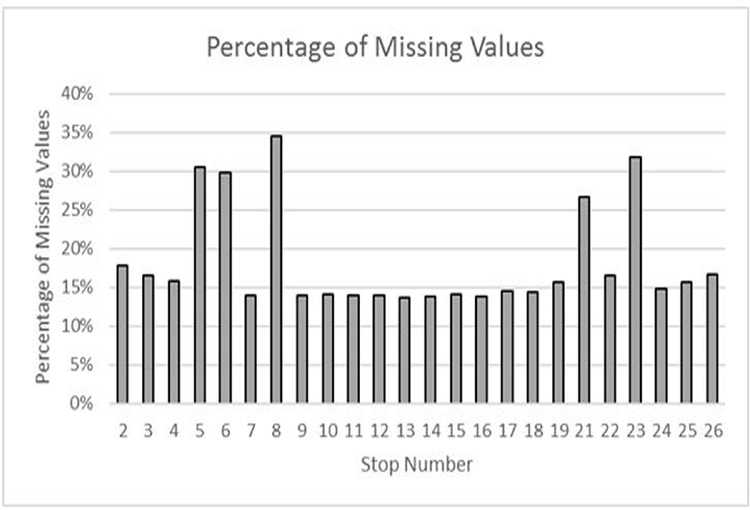

Figure 3: Percentage of missing values by stop number

Figure 4: Percent of missing values by trip start time and stop number

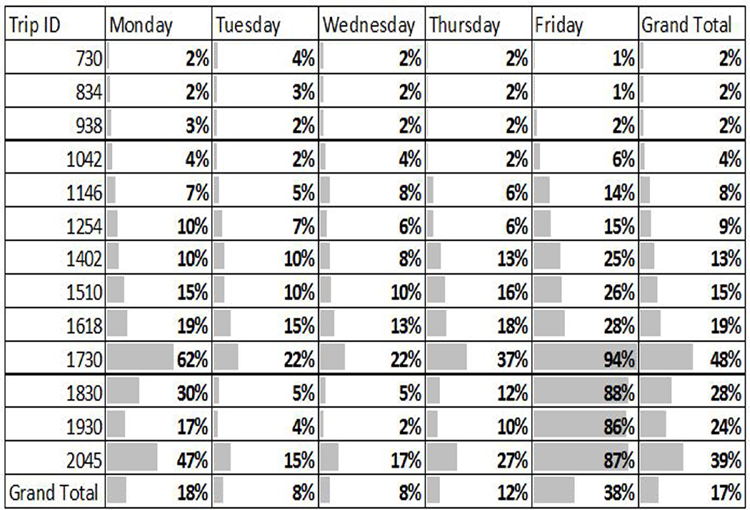

When analyzing the occurrence of missing values by day of the week, there is an increase in the number of Occurrences on Fridays followed by Mondays (Figure 5). By cross-tabulating by day of the week and stop number (Figure 6), and by day of the week and trip start time (Figure 7), we identify that data capture is completely unreliable on Fridays after 5:30 PM.

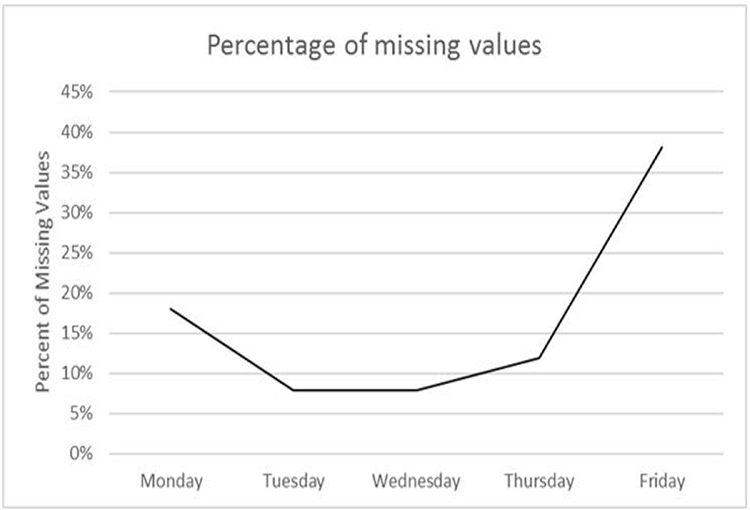

Figure 5: Percentage of missing values by day of the week

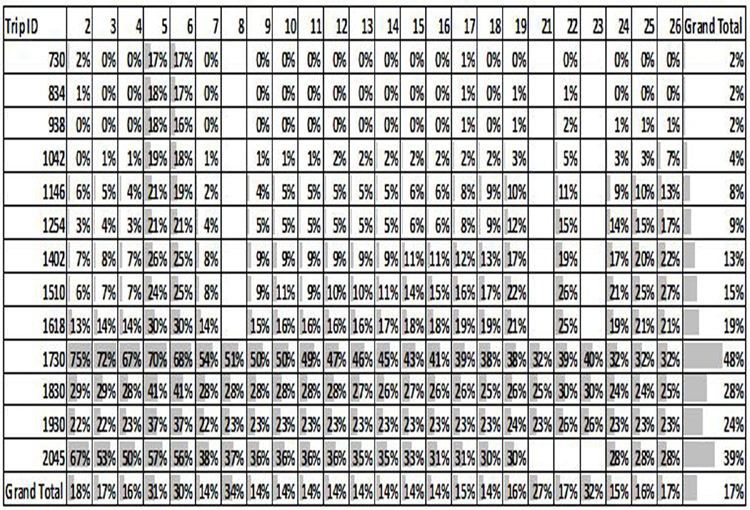

Figure 6: Percentage of missing values by day of the week and stop number

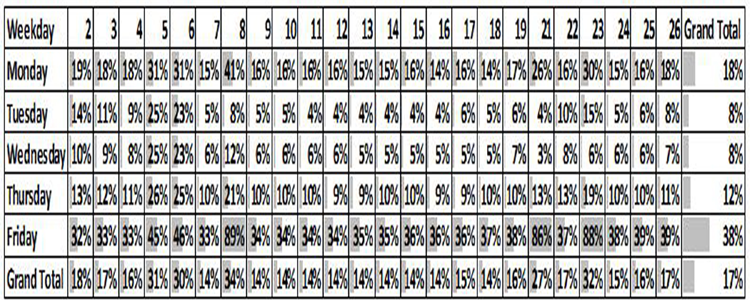

Figure 7: Percentage of missing values by day of the week

To identify if there was a relationship between seconds late (deviation from scheduled departure time) and the occurrence of missing values, a variable was created to keep the last recorded seconds late before a missing value or a series of missing values occurred. We created a histogram of the frequency of missing values by last recorded seconds late (Figure 8) and observed an increase in the number of missing values when the buses were about 20 minutes late.

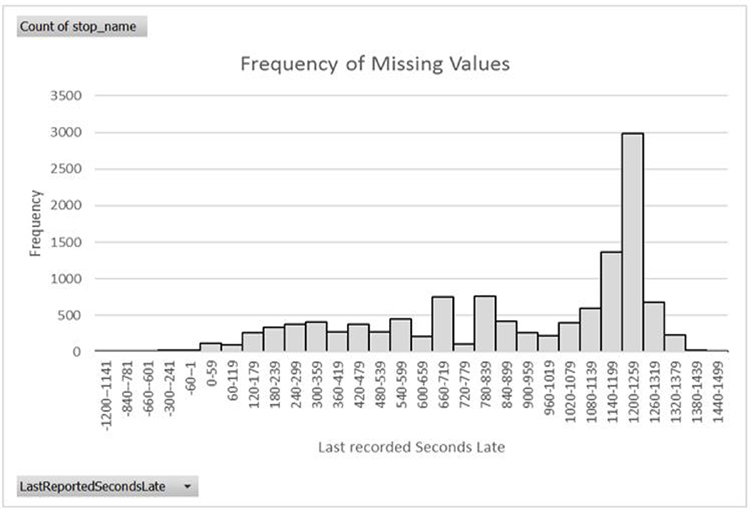

Figure 8: Histogram of missing values by last recorded seconds late

2.2. Outlier analysis

The variable of interest, seconds late, measures the deviations on departure time from the schedule. It shows large variation and a significant number of outliers and extreme values (Figure 9). We wanted to measure how incomplete data per trip affects the occurrence of extreme values. After eliminating records from the first and twentieth stop, we consider that a trip data capture is complete if it reports all the corresponding stop level records (varies per pattern: weekday 21 records, night 1, 24 records, night 2, 21 records). About 60% of the trips have no missing values (Table 2).

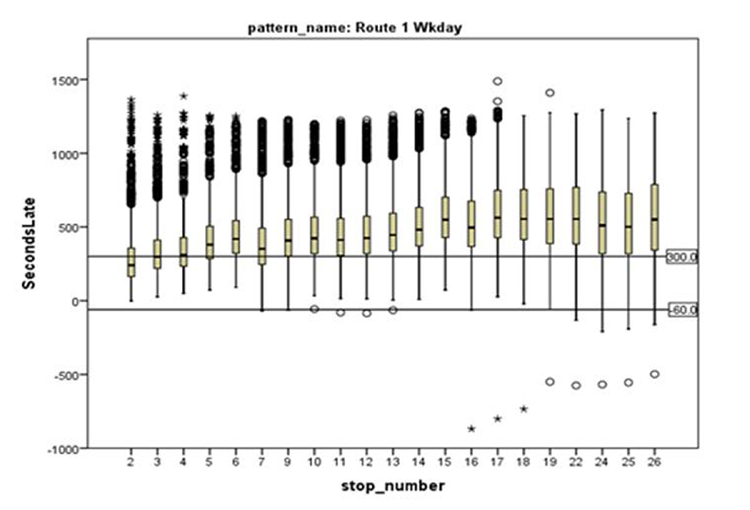

Figure 9: Seconds late by stop number for the weekday pattern

Table 2: Trips with no missing values

We selected the five highest and lowest values for SecondsLate for each Trip_Id and graphed them against number of valid records per trip (Figure 10). We then selected the five highest and lowest values for SecondsLate for each stop and graphed them against the number of valid records per trip (Figure 11). We identified that negative seconds late (lowest extreme values) happen when there are a high number of missing values per trip (ten or fewer records per trip). We then graphed all stop records with negative SecondsLate against the number of valid records per trip and we identified the same pattern, when there are ten or less valid records per trip the frequency and magnitude of negative SecondsLate increases (Figure 12). We recommend eliminating trips to ten or less valid stop level records (130 trips) from further analysis.

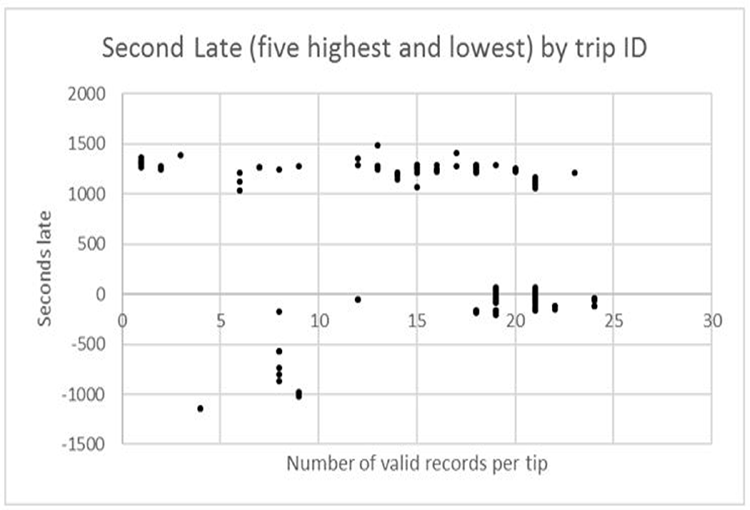

Figure 10: Seconds late outliers (Five highest and lowest by trip start time) by number of valid records per trip

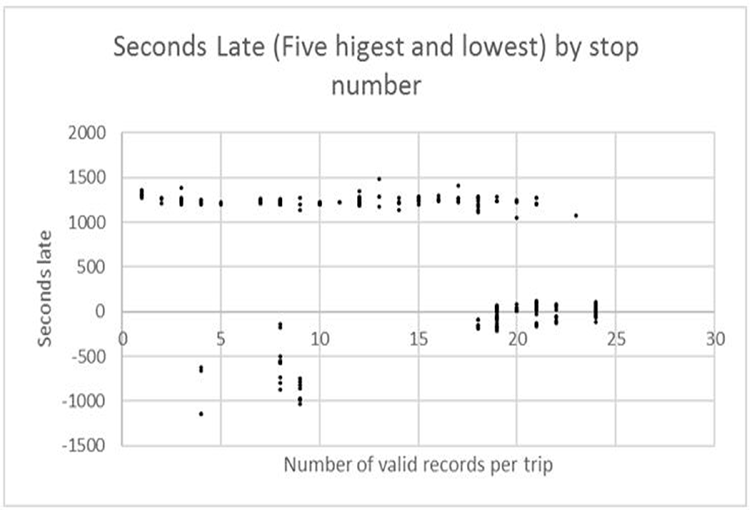

Figure 11: Seconds late outliers (Five highest and lowest by stop number) by number of valid records per trip

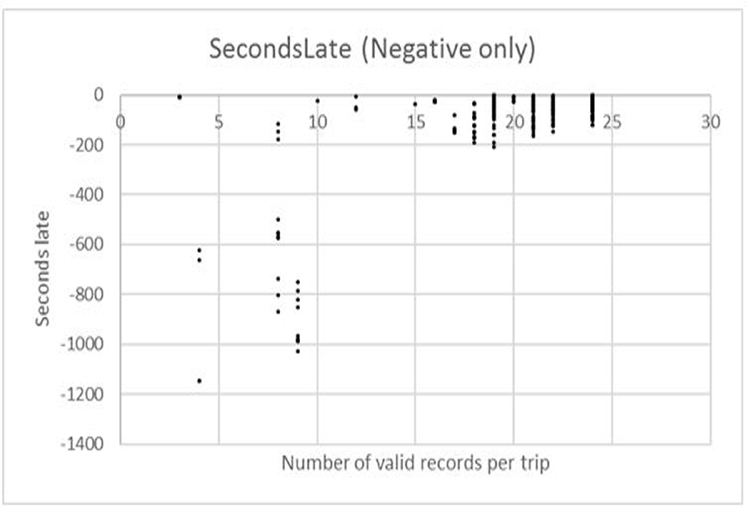

Figure 12: Seconds late (all stop records with negative seconds late) by number of valid records per trip

3. CONCLUSIONS AND RECOMMENDATIONS

The objective of our research was to perform a data completeness analysis in preparation for further studies such as run time analysis. The concern is that errors in data capture or archiving could lead to wrong conclusions, particularly when systematic data capture errors are present. We conclude that Systematic data capture errors are present:

• Data capture at the terminal (beginning and end) of the trip are unreliable.
• Stop number 20 is misconceived and not recording any values.
• Stops number 5 and 6 has a high frequency of missing values.
• There is a correlation between trip start time and the occurrence of missing values: at the start time increases, the occurrence of missing values increases.
• Mondays and Fridays present a higher frequency of missing values particularly for the 5:30 PM trip where on Fridays, 94% of values are missing. Late Friday trips have the highest percentage of missing values: between 86% and 94%.
• The system seems to malfunction when the busses are around 20 minutes late and does not seem to record values after 1500 seconds (25 minutes) late.
• The occurrence of suspect outliers with negative seconds late increase when there are less than 10 valid stop level records per trip.

We recommend adjusting the configuration of stop 20, 5, and 6 so they record stop level data. We also recommend studying the data capture errors identified and reducing them before run time analyses are performed. Problems with data capture at the beginning and end of the trip are known problems with AVL Systems, particularly in routes configured as a loop. We recommend using the arrival at stop 2 and departure from stop 26 and proxies for the trip start and end.

After discussing our results with management and the AVL system contractor the following changes were introduced:

• The trigger box for stoping 20 was relocated. It should start generating stop level reports.
• It was identified that the busses drove a different route than expected and were not covering steps 5 and 6. A service change has been introduced and the stops should be serviced properly generating stop level records.
• It was identified that on Fridays at 5:30 PM the bus was being assigned in the system to a different logical route than the one being covered. This problem has been addressed and the bus should start generating stop level records on Fridays after 5:30 PM.
• It was identified that with the software currently installed when the busses are late for a significant amount of the system malfunctions. The bus loses schedule adherence and fails to properly be assigned to the next trip. A firmware upgrade on the vehicle has been recommended to address the issue.

We recommend that a new data completeness analysis is performed to quantify the Effectiveness of the proposed changes.

Given the widespread adoption of AVL system by rural transit system, it is recommended that detail data Completeness analysis become routine before using the data generated to perform other studies, such as runtime analysis.
